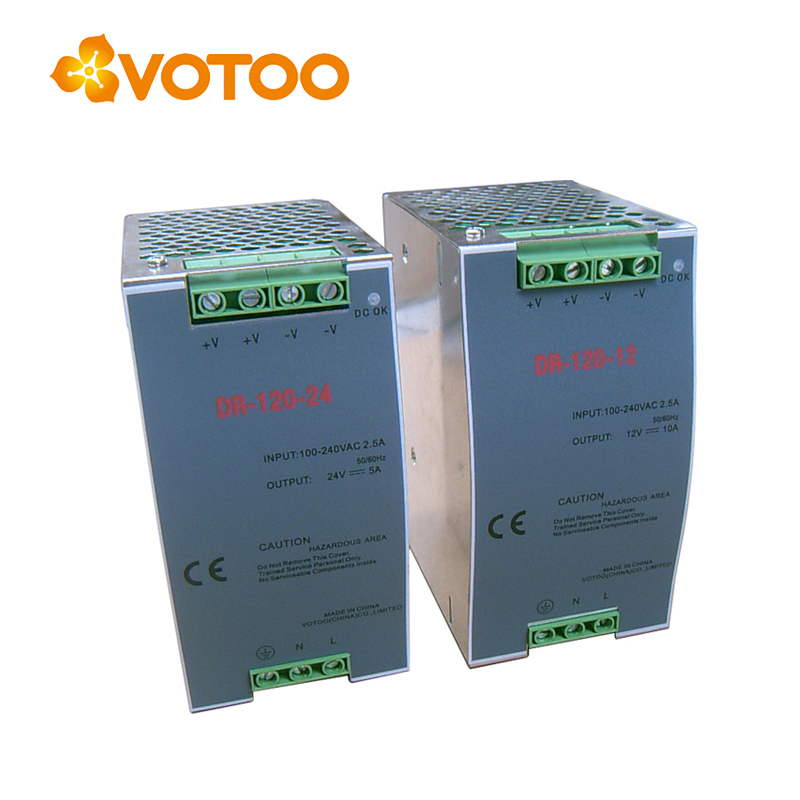

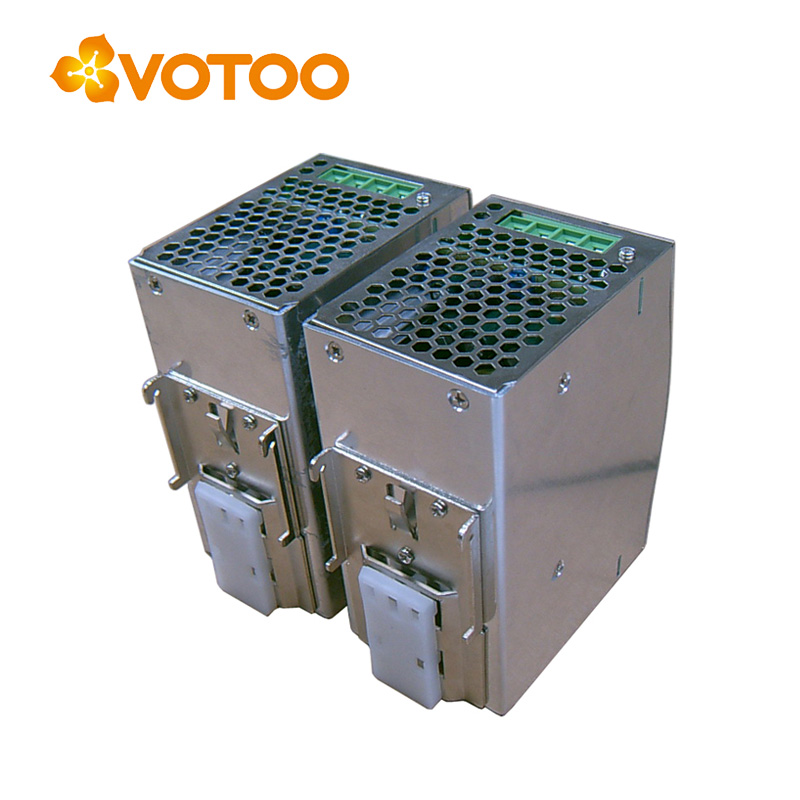

120W Enclosed Power DR-120

Min.Order Quantity: 1K PCS
Port: ShenZhen
Payment Terms: T/T,Western Union,PayPal
Porudct time: 10 to 15 working days or depending on the order
Package: Carton
1 years warranty

Contact purchase

shared：

Product details

SPECIFICATION

Output	SPEC MODEL NO.	DR-120-12	DR-120-24
	DC VOLTAGE	12V	24V
	RATED CURRENT	10A	5A
	CURRENT RANGE	0-10A	0-5A
	RATED POWER(MAX)	120W	120W
	RIPPLE & NOISE（MAX）	1%	1%
	VOLTAGE TOLERANCE	±5%	±5%
	LINE REGULATION	1%	1%
	LOAD REGULATION	±5%	±5%
	SETUP,RISE,HOLD UP TIME	1000ms, 50ms, 12ms at full load
Input	VOLTAGE RANGE	100-240V AC
	FREQUENCY	50/60HZ
	EFFICIENCY	80%~90%	80%~90%
	AC CURRENT	2.5A / 100VAC
	INRUSH CURRENT (max.)	50A / 230VAC
	LEAKAGE CURRENT (max.)	0.25mA / 240VAC
Protection	OVER LOAD	>110% rated output power
		Protection type: Hiccup mode,recovers automatically after fault condition is removed
	OVER VOLTAGE	>120% rated output voltage
		Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT	WORKING TEMP.	0 - +40℃
	WORKING HUMIDITY	20% ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20 - +85℃,10% to 95% RH
	TEMP. COEFFICIENT	0.03% /°C(0 ~ 40℃ )
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS	EN-60950-1 Approval
	WITHSTAND VOLTAGE	I/P-O/P:3KVDC
	ISOLATION RESISTANCE	I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH ℃
	EMC TEST STANDARD	Compliance to EN61347-1:2008+A1:2011+A2:2013 EN 61347-2-13:2014
		Compliance to EN61000-3-2,3 EN55024:2010
OTHERS	MTBF	780Khrs min. MIL-HDBK-217F (25 )
	DIMENSION	1864533mm
	PACKING	243g/pcs; 50pcs/carton
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25of ambient temperature.°C 2. Tolerance : includes set up tolerance, line regulation and load regulation. 3. Derating may be needed under low input voltage. Please check the static characteristics for more details. 4. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will beaffected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 5. When applying DC voltage for input, please connect the brown input wire to the positive side whereas blue input wire to the negative side.
