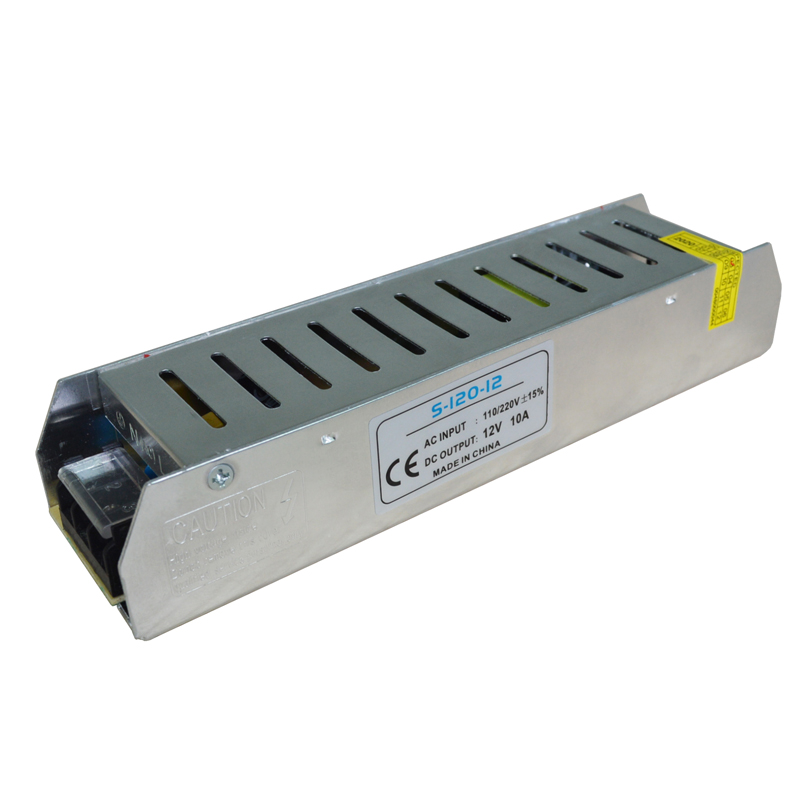

120W Enclosed Power S-120

Products > Enclosed > 120W Enclosed Power S-120

120W Enclosed Power S-120

Min.Order Quantity: 1K PCS
Port: ShenZhen
Payment Terms: T/T,Western Union,PayPal
Porudct time: 10 to 15 working days or depending on the order
Package: Carton
1 years warranty
shared:
SPECIFICATION
OutputSPEC MODEL NO.S-120-12S-120-24
DC VOLTAGE12V24V
RATED CURRENT10A5A
CURRENT RANGE0-10A0-5A
RATED POWER(MAX)120W120W
RIPPLE & NOISE(MAX)1%1%
VOLTAGE TOLERANCE  ±5%±5%
LINE REGULATION1%1%
LOAD REGULATION±5%±5%
SETUP,RISE,HOLD UP TIME1000ms, 50ms, 12ms  at full load
InputVOLTAGE RANGE 100-240V AC
FREQUENCY 50/60HZ
EFFICIENCY  80%~90%80%~90%
AC CURRENT1.5A / 100VAC
INRUSH CURRENT (max.)50A / 230VAC
LEAKAGE CURRENT (max.)0.25mA / 240VAC
ProtectionOVER LOAD>110% rated output power
Protection type:
   Hiccup mode,recovers automatically after fault condition is removed
OVER VOLTAGE>120% rated output voltage
Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENTWORKING TEMP.0 - +40℃
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY-20 - +85℃,10% to 95% RH
TEMP. COEFFICIENT0.03% /°C(0 ~ 40℃ )
VIBRATION10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &
   EMC
SAFETY STANDARDSEN-60950-1 Approval
WITHSTAND VOLTAGEI/P-O/P:3KVDC
ISOLATION RESISTANCEI/P-O/P:100M Ohms / 500VDC / 25 / 70% RH ℃
EMC TEST STANDARDCompliance to EN61347-1:2008+A1:2011+A2:2013 EN 61347-2-13:2014
Compliance to EN61000-3-2,3  EN55024:2010
OTHERSMTBF780Khrs min.      MIL-HDBK-217F (25 )
DIMENSION186*45*33mm
PACKING243g/pcs; 50pcs/carton
NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25of ambient temperature.°C
2. Tolerance : includes set up tolerance, line regulation and load regulation.
3. Derating may be needed under low input voltage. Please check the static characteristics for more details.
4. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will beaffected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
 5. When applying DC voltage for input, please connect the brown input wire to the positive side whereas blue input wire to the negative side.
